Product Details:
|
| Coil Weight: | 3-8 Tons | Thickness: | 0.105-0.8mm |
|---|---|---|---|
| Zinc Coating: | Z30-275g/m2 | Basal Plate: | GI GL PPGI |
| Surface Treatment: | Oiled (O), Chromium (C),Phosphating (P), Spinpass Resistant To Fingerprints(AFP) | Painted Brand: | Akzo Paint,Nippon, KCC,etc |
| High Light: | AZ150 Galvanized Corrugated Sheet,Galvanized Corrugated Sheet 0.15mm Z30,0.15mm Z30 Galvalume Roofing Sheet |
||

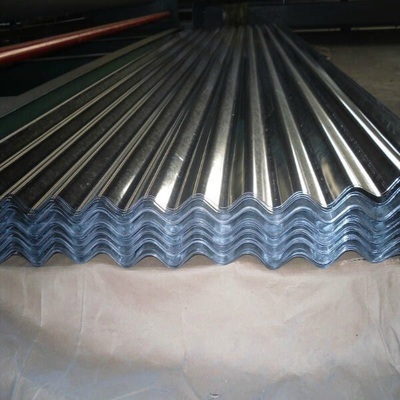

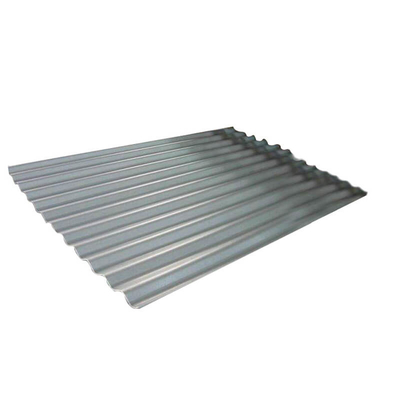

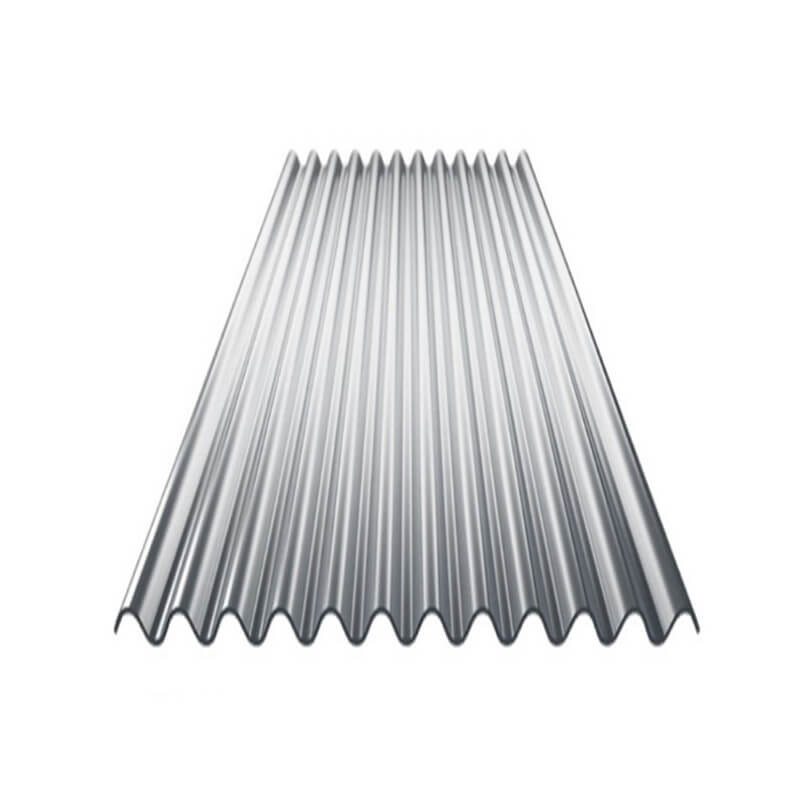

Galvanzied AZ150 Aluzin Coated GL Corrugated 0.15mm Galvalume Roofing Sheet
Product Introduction
There are a variety of classification methods for molded steel plates according to the application site, profile wave height, lap structure, and material. Common classification methods are as follows:
(1) According to the classification of application parts - divided into roof plate, wall panel, floor bearing plate and ceiling plate. At the same time, color steel plate is used to make wall decorative board, and the architectural decoration effect is novel and unique.
(2) According to the wave height classification - divided into high wave plate (wave height ≥70mm), medium wave plate (wave height <70mm) and low wave plate (wave height <30mm)
(3) According to the substrate quality classification - divided into hot dip galvanized substrate, hot dip aluminum zinc and hot dip galvanized aluminum substrate.
(4) According to the structure of plate seam classification - divided into lap joint, edge bite and compression structure. Among them, the biting edge, compression of medium and high wave plate should be used as the roof board with higher waterproof requirements; Overlapped medium and high wave plate galvanized sheet with floor cover plate; Overlapped low-wave plates should be used as wall panels.
|
Sample |
Sample Provided |
|
Thickness |
0.105-0.8mm |
|
Payment term |
TT, LC, DA, DP |
|
Coil Weight |
3-8 Tons |
| color coating | 7-30um |
| Price term | CIF CFR FOB EX-WORK |
|
Delivery time |
35-50 days (based on quantity) after receiving advanced payment by T/T or LC |
|
Zinc Coating |
Z30-275g/m2 |
FAQ

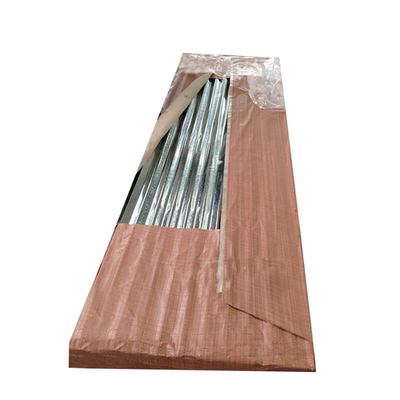

Q: What's your product package?
A: First packed with plastic film, second covered with kraft paper to avoid wet, thrid covered with iron sheet then tie up with packing strap
2. Q: How is your quality waranty?
A: Third party inspection can be served and we also have own lab test which can control the quality strictly
A: We have the best quality and excellent services,so you can assureto buy our products.
3. Q: how can i choose the coating color?
A: our color is based on RAL color standard chart.
4. Q:what is your thickness range for the galvanized steel coil?
A: We can do thickness from 0.12mm-3.0mm for GI products.
5. Q: can you tell me your cooperated customer name in my market ?
A: As you know customer name is commercial secreat ,we can send you our customer B/L for your reference
6. Q: what is the coil weight?
A: Normally, it is 3-5tons.
7.Q: How long is the Shelf life of the roofing sheet?
A: about 15-20 years.
