Product Details:
|
| Standard: | ASTM, Bs, DIN, GB, JIS | Zinc Coating: | Z30 - 275g/㎡ |
|---|---|---|---|
| Material: | SGLCC | Surface Treatment: | Coated |
| Tolerance: | ±1% | Application: | Widely Used |
| High Light: | Red Ral 9003 Prepainted Galvalume Steel Coil,Prepainted Galvalume Steel Coil Az150,Az150 Ppgi Ppgl Roll |
||

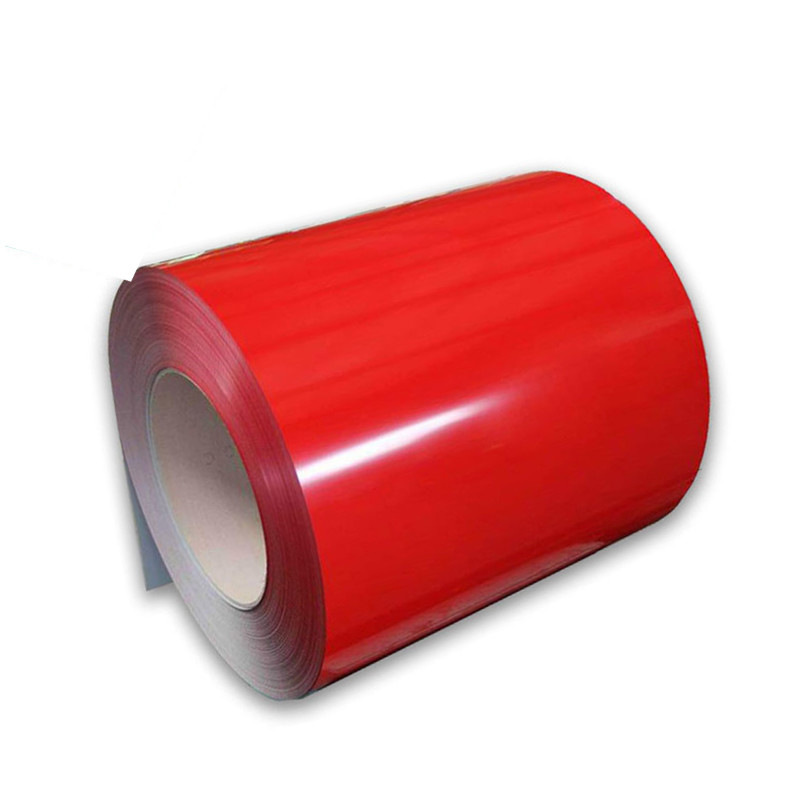

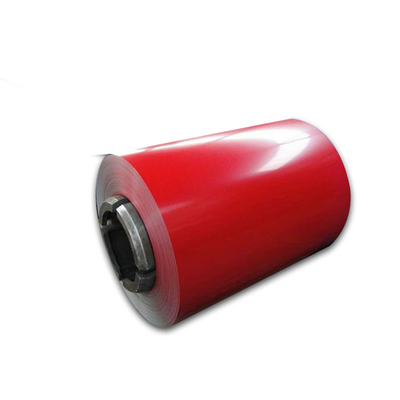

Red Ral 9003 Prepainted Galvalume Steel Coil Az150 Ppgi /Ppgl 99% Pure Zinc Coating
Can galvanized steel be welded?
Galvanized steels are welded easily and satisfactorily by most commonly practised welding techniques. Closer control of welding conditions than for uncoated steel is usually necessary but procedures are simple and well established.
Key points related to the processing method of galvanized coil
1. Cold-rolled and hot-rolled steel sheets are degreasing by alkali, washed with water, dried, and then annealed in a horizontal (vertical) heating furnace heated by radiant tubes. A certain amount of hydrogen was introduced into the furnace to reduce the atmosphere of the early layers in the furnace.
2. The steel strip heated to a certain temperature is immersed in a zinc solution under certain conditions for hot-dip galvanizing.
3. The size of the spangle is controlled by the liquid zinc composition, and at the same time, it is controlled by the method of forced cooling. Before the spangle begins to spread, the small spangle product is quenched with a small spangle equipment to prevent the zinc liquid from continuing to spread to form a small spangle.
4. After hot-dip galvanizing, after working and cooling, the surface is finished. Finally, depending on the application, the surface is passivated or directly made into color-coated coil plates.
| Name | Prepainted galvalume steel/ppgi/ color coated steel coil |
| PPGI Thickness | 0.15mm-1.2mm |
| PPGI Width | 750mm-1250mm ,also available for strip 28mm-600mm |
| PPGI Color | According to RAL color or clients sample |
| Painting Thickness |
PE paint top coating 15-25micron , back coating is 5-10micron if back coating is double ,thickness can be 22micron |
| Zinc Coating | 99% pure zinc coating ,zinc weight from 40GSM to 275 GSM |
| Quality Control | SGS testing , test zinc coating thickness/PE coating thickness/ T testing and others by every coil |
| PPGI Package | water proof paper is inner packing, galvanized steel or coated steel sheet is outer packing , side guard plate , then wrapped by seven steel belt . |
| Certificate | ISO 9001:2008 |
Why Choose Us
01.Advanced equipment
Three galvanized steel coil production lines, using the most advanced equipment in China, a plant area of 30,000 square meters.
02.High-quality base steel
We choose high-quality raw materials. Our base steel comes from Baosteel, Shougang, etc., and our coating materials come from Nippon, Aksu and other well-known international brands.
03.Output
Galvanized steel coils with a monthly output of about 5000-10000 tons, and have sufficient inventory.
04.Quality inspection
The implementation of strict quality inspection standards, products comply with ISO, SGS international standards, to ensure 100% compliance with customer requirements.
05.Fast delivery
Advanced production management process, from production to delivery, efficient and fast.
06.Sales services
