Product Details:
|
| Standard: | AISI | Thickness: | 0.105-0.8mm |
|---|---|---|---|
| Length: | 1400-1799mm, 1.8- 5meters Or As Client's Request | Processing Service: | Cutting |
| Application: | Construction, Sandwich Panel, Roofing Sheet, Container Plate, Rolling Shutter | Oiled Or Non-oiled: | Non-oiled |
| Alloy Or Not: | Non-Alloy | ||
| High Light: | 1100mm Galvanized Roofing Sheet,600mm Galvanized Roofing Sheet AISI,AISI 14 Gauge Corrugated Steel Panels |
||

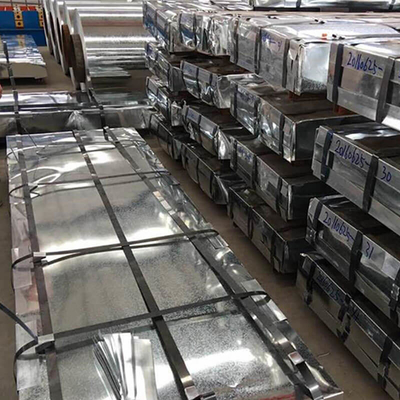

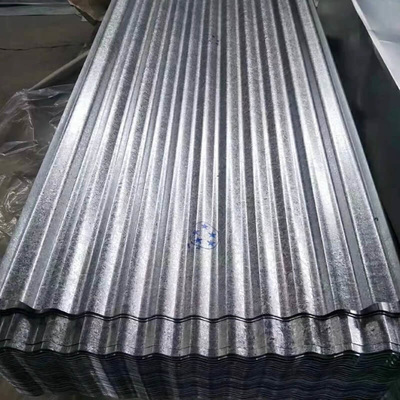

GI Roofing Sheet Corrugated Metal 14 Gauge Galvanized Steel Sheet kraft
| What is galvanized roofing sheets? What Is GI Roofing Sheet? GI roofing sheet is short for galvanized iron roofing sheet. It is profiled with galvanized steel sheet for roofing purposes, which has been coated with zinc. The zinc coating provides the base steel protection from moisture and oxygen. |
| Will galvanized roof rust? Some metals such as steel, galvalume, and galvanized roofing materials are prone to rust when exposed to moisture. Preventing rust is understandably a big concern for homeowners considering metal roofing. Which is the cheapest roofing sheet? Metal roofing sheets are the most inexpensive option, while corrugated roof sheets are extremely durable |
| Which is better galvanized or galvalume? Galvalume is generally considered to be more favorable in appearance when compared to galvanized steel. The two coatings' differences are subtle, but galvalume offers a smoother, matte appearance, while galvanized coating is more rough and shiny. |
| What is the thickness of GI sheet? Thickness (uncoated sheets): 0.18, 0.22, 0.25, 0.28, 0.32, 0.40, 0.45, 0.50, 0.55, 0.63, 0.70, 0.80, 0.90, 1.00 and 1.60 mm. The tolerance on thickness of sheet and coil shall be according to IS 1079 or IS 513 as applicable |
| Product Name | Galvanized Roofing Sheet |
| Thickness | 0.105-0.8mm |
| Width | Before Corrugated: 762-1250mm, After Corrugated: 600-1100mm |
| Length | As require |
| Zinc Coating | Z30 - 275g/㎡ |
| Top Paint | 8-35 Micron |
| Back Paint | 3-25 Microns |
| Basal Plate | GI GL PPGI |
| Normal Roof shape | Wave shape, T shape |
| ID of Coil | 508/610MM |
| Surface Structure | Regular spangle,Minimum spangle, Zero spangle, Big spangle |
| Color | Blue,Green,Golden,Yellow |
| HRB | Soft Hard (＜60),Medium Hard (60-85), Full Hard (85-95) |
| Surface Treatment | Oiled (O), Chromium (C),Phosphating (P), Spinpass Resistant to Fingerprints(AFP) |
| Standard Seaworthy Export Packing | Dust-proof kraft sheet, Iron packing, Angle protective ,Packing belt,Wood pallet |
