Product Details:
|
Tolerance: | 10%, Thickness:+/-0.02mm Width: +/-2mm | HRB: | Soft Hard (<60),Medium Hard (60-85), Full Hard (85-95) |
---|---|---|---|
Width: | 600mm-1250mm | Color: | RAL Coil |
Painting Coat Style: | 2/1, 2/2 | ||
High Light: | Z40 Ppgi Prepainted Steel Coil,Ppgi Prepainted Steel Coil 508MM,508MM Color Prepainted Galvanized Steel Coil |

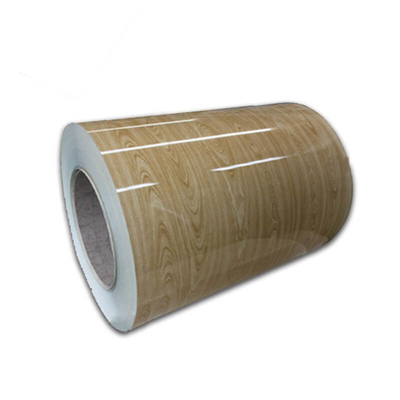

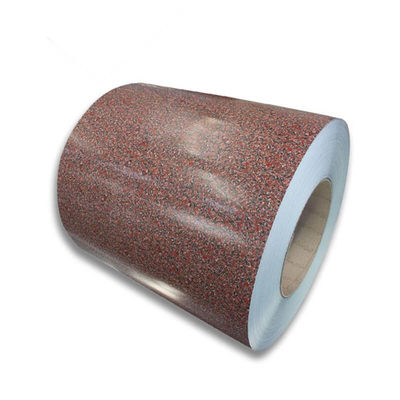

Printed Color Coated Steel Coil 508/610MM Good Heat Reflective
Galvanized steel plate is to prevent the surface of the steel plate from being corroded and prolong its service life, and the surface of the steel plate is coated with a layer of metal zinc.
1. Classification
According to production and processing methods, it can be divided into the following categories:
①Hot dip galvanized steel sheet. The sheet steel is immersed in a molten zinc bath, and a sheet of zinc is adhered to its surface. At present, it is mainly produced by continuous galvanizing process, that is, galvanized steel plate is made by continuously immersing the rolled steel plate in a plating tank where zinc is melted;
②Alloyed galvanized steel sheet. This kind of steel plate is also manufactured by hot dip method, but immediately after being out of the tank, it is heated to about 500 ℃ to form an alloy coating of zinc and iron. This galvanized sheet has good paint adhesion and weldability;
③ Electro-galvanized steel sheet. The galvanized steel sheet produced by the electroplating method has good workability. However, the coating is thin, and the corrosion resistance is not as good as that of the hot-dip galvanized sheet;
④Single-sided and double-sided differential galvanized steel. Single-sided galvanized steel sheet, that is, a product that is galvanized on only one side. In welding, painting, anti-rust treatment, processing, etc., it has better adaptability than double-sided galvanized sheet. In order to overcome the disadvantage that one side is not coated with zinc, there is another galvanized sheet coated with a thin layer of zinc on the other side, that is, double-sided differential galvanized sheet;
⑤Alloy and composite galvanized steel sheet. It is made of zinc and other metals such as lead and zinc to make alloys and even composite plated steel sheets. This kind of steel plate has both excellent anti-rust performance and good coating performance;
In addition to the above five types, there are also colored galvanized steel sheets, printed and painted galvanized steel sheets, and PVC laminated galvanized steel sheets. But the most commonly used is still hot-dip galvanized sheet.
Grade | CGCC,CGCH,G550,DX51D,DX52D,DX53D |
Thickness | 0.12-4.0mm |
Width | 600-1500mm |
Zinc Coating | Z40-600 g/m2 |
Coating Thickness | Top-15-35, Back 5-15 |
Color | RAL Color |
Surface |
Matt,High gloss,Color with two sides,Wrinkle, Wooden color,Marble |
Paint Brand | Nippon Akzo Nobel Kcc |
Coil Weight | 2-5tons |
Coil ID | 508/610 mm |
Packaging & Shipping
Quality Inspection
Q1: What's the payment terms of your product?
A: FOB: 30% by T/T in advance+70% Balance by T/T before shipment.
Q2: What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q3: Do you have any certificates of your products?
A: We have ISO 9001 certificate and SGS quality certificate.
Q4:What's your product package?
A: First packed with plastic film, second covered with kraft paper to avoid wet, thrid covered with iron sheet then tie up with packing strap.
Q5: Minimum order quantity?
A: MOQ is 1 tons.
Q6:you are the manufacture or trading company ?
A1:we are the manufactuer,we have our own production line.
A2: We are Factory. High quality products with most economic price can be provided to you.
